Create, Explore or Edit 3D CAD data
Develop your own — independent — CAD/CAM/CAE application
Overview

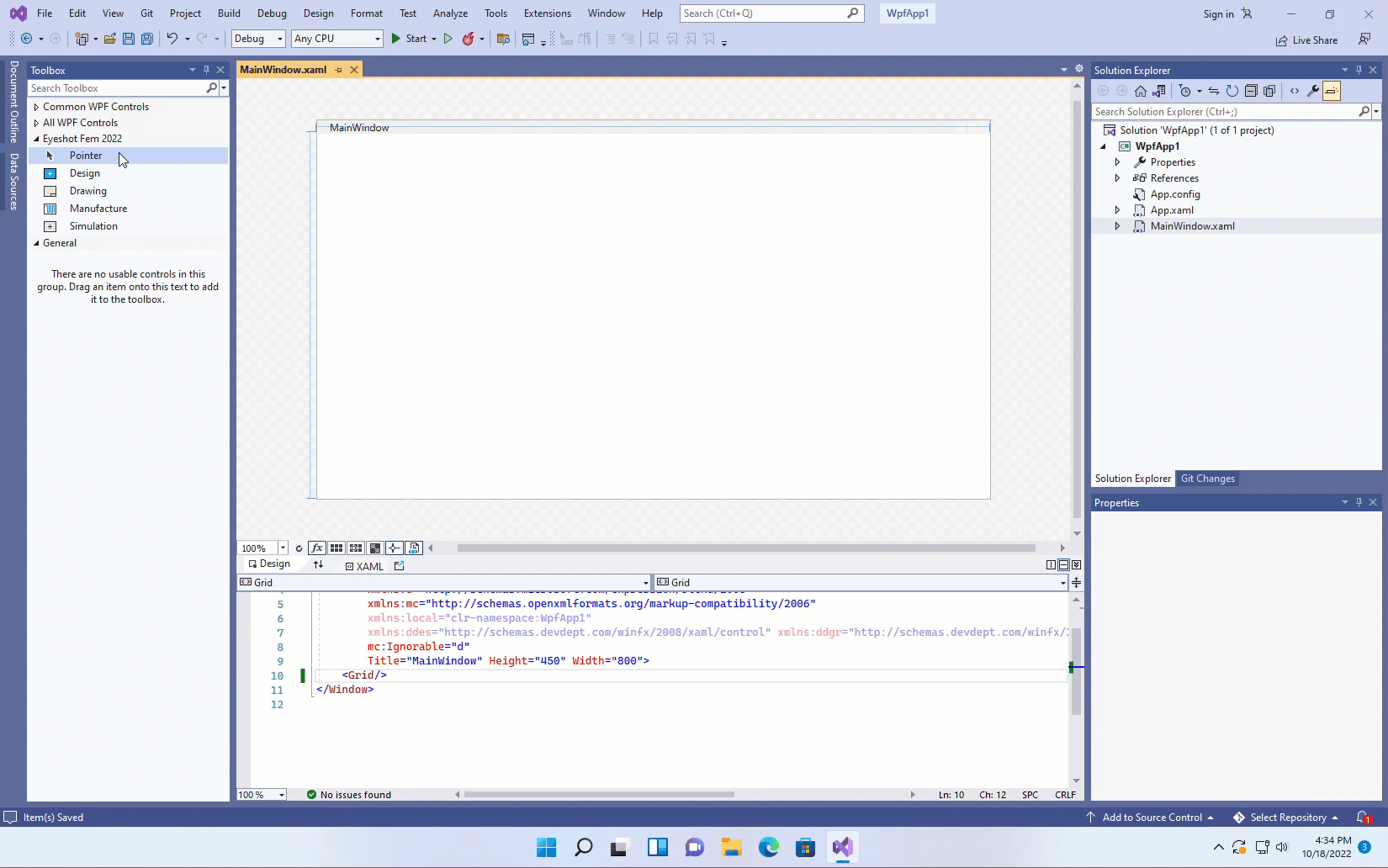

Eyeshot is a CAD control for .NET. It supports natively Windows Forms and Windows Presentation Foundation. It is delivered with four different Visual Studio toolbox items: Design for 2D and 3D geometry creation or edit, Drawing for automatic 2D view generation, Simulation for geometry validation using linear static analysis and Manufacture for CNC toolpath generation and simulation. A number of preconfigured viewport styles and configurations are available at design-time. All the features not related to UI are available as a .NET neutral cross-platform core. The installer includes 80 code samples for both WinForms and WPF (and for both C# and VB.NET programming languages) that cover most of the CAD/CAM/CAE recurrent topics.
Why Eyeshot?
|
Native WinForms and WPF controls |
|
Choose between Mesh, Surface or BRep modeling technologies. |
|
Execute heavy operations asynchronously |
|
Import/export neutral CAD formats |
|
Choose between OpenGL or Direct3D renderer |
|
Neutral .NET cross-platform core |
|
Access all available model data: geometry, topology and assembly tree. |
|
Royalty free licensing model |

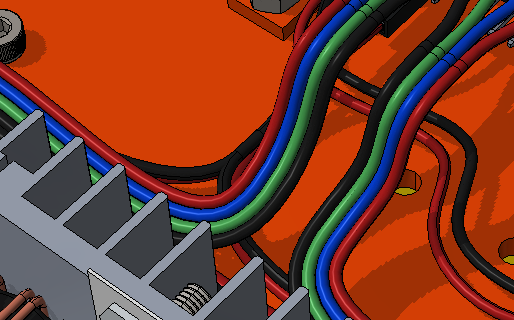

3D Graphics
Forget about blending, polygon offset, shaders, shadow maps, FBOs, VBOs, etc: Eyeshot already implements these advanced 3D graphics technologies in the most efficient way, and for both OpenGL and DirectX renderers.

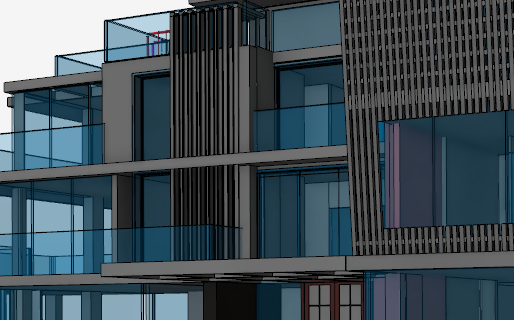

Drawing Speed
The minimum frame rate feature, the progressive drawing, small object culling and frustum culling always ensure the best 3D navigation experience, even for large datasets.

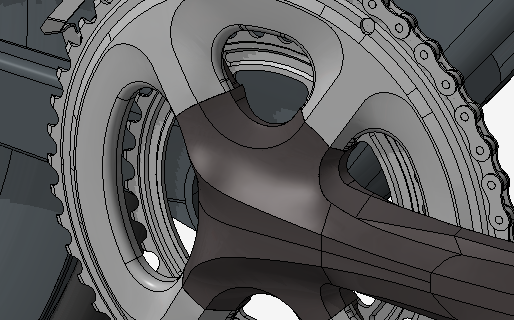

Accuracy
NURBS curve and surface are the most accurate geometry representation available. They can either be created from scratch or imported from IGES or STEP file formats. A number of tools are available for creating or editing these objects.

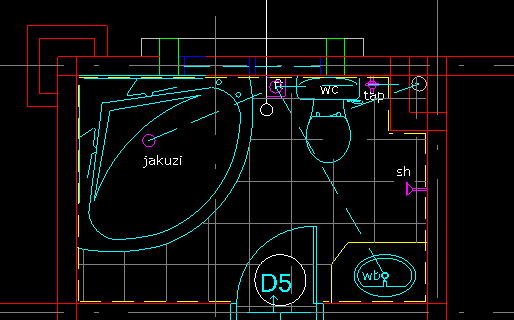

DWG Support
devDept, as ODA Sustaining Member, is always aligned with the latest DWG/DXF versions. Our products are upgraded and tested for every new DWG/DXF file format available.

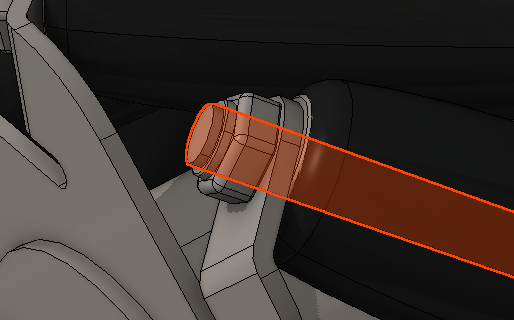

Advanced Selection
Eyeshot features a number of different selection modes. You can choose to select entities at the front or throughout the scene by pick, box or polygon. Sub-item selection (object face, edge or vertex) is also available; all of this even programmatically.

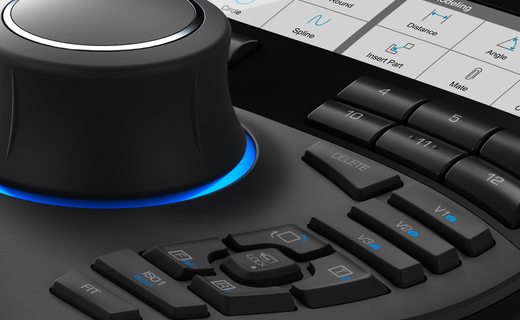

Input Devices
Input devices are critical for a modern CAD application. With Eyeshot, you can select between standard mouse, 3D mouse, fingers (multi-touch) or pen input devices.
3D Graphics
Forget about blending, polygon offset, shaders, shadow maps, FBOs, VBOs, etc: Eyeshot already implements these advanced 3D graphics technologies in the most efficient way, and for both OpenGL and DirectX renderers.
Drawing Speed
The minimum frame rate feature, the progressive drawing, small object culling and frustum culling always ensure the best 3D navigation experience, even for large datasets.
Accuracy
NURBS curve and surface are the most accurate geometry representation available. They can either be created from scratch or imported from IGES or STEP file formats. A number of tools are available for creating or editing these objects.
DWG Support
devDept, as ODA Sustaining Member, is always aligned with the latest DWG/DXF versions. Our products are upgraded and tested for every new DWG/DXF file format available.
Advanced Selection
Eyeshot features a number of different selection modes. You can choose to select entities at the front or throughout the scene by pick, box or polygon. Sub-item selection (object face, edge or vertex) is also available; all of this even programmatically.
Input Devices
Input devices are critical for a modern CAD application. With Eyeshot, you can select between standard mouse, 3D mouse, fingers (multi-touch) or pen input devices.
Image Gallery
Get an idea of the 3D graphics our products
can deliver. Focus on geometry and assembly complexity for the mechanical and architectural industries.
Not sure which product edition is right for you? Explore Products.
Licensing FAQ
Eyeshot is licensed per developer. Once you purchase a license, you can build and publish your .NET applications using Eyeshot control. Redistribution licensing is perpetual and royalty-free.
End-User Licensing Agreement
Our End-User License Agreement (EULA) includes information on devDept's licensing, legal agreement, and the terms and conditions that govern software usage.
Source Code Escrow
Protect your vital business applications and software and lower the risk of investing in software that you do not own.
Made with Eyeshot
Explore this Made with Eyeshot showcase to learn how developers around the world employ devDept software components for their
CAD applications based on .NET
