Eyeshot Fem

Everything in Ultimate, plus Geometry meshing and Finite Element Analysis.

€91 / mo

DOWNLOAD FREE TRIAL

Scope

Eyeshot Fem edition is designed for Geometry meshing and Finite Element Analysis.

Modules

Geometric modules included in this product edition

Region Booleans

Trim and Union/Subtraction/Intersection operations for planar regions.

BRep Booleans

Trim and Union/Subtraction/Intersection operations for manifold 3D solids.

Meshing

Subdivision of a continuous geometric space into discrete geometric and topological cells.

Collision Detection

Determining if when and where two objects come into contact.

Geometric Constraint Solver

Find the positions of geometric elements that satisfy the given constraints.

Hidden Lines

2D vector views generation of complex 3D models.

FEM Solver

Partial differential equations solution in two or three space variables.

Surface Reconstruction

Compute a triangle mesh interpolating a given point cloud.

Geometry Tessellation

Subdivision of analytical curves and surfaces into polygonal chains and meshes.

Surface Trim

Find the intersection of two surfaces.

Surface Fillet

Create a surface that smoothly connects two primary surfaces.

Machining

Generate 3D toolpaths for a given setup, geometry and tool definition.

Marching Cubes

Generate surfaces for a 3D scalar field.

Mesh Booleans

Union/Subtraction/Intersection operations for mesh objects.

Measure

Minimum distance computation between objects.

Image Gallery

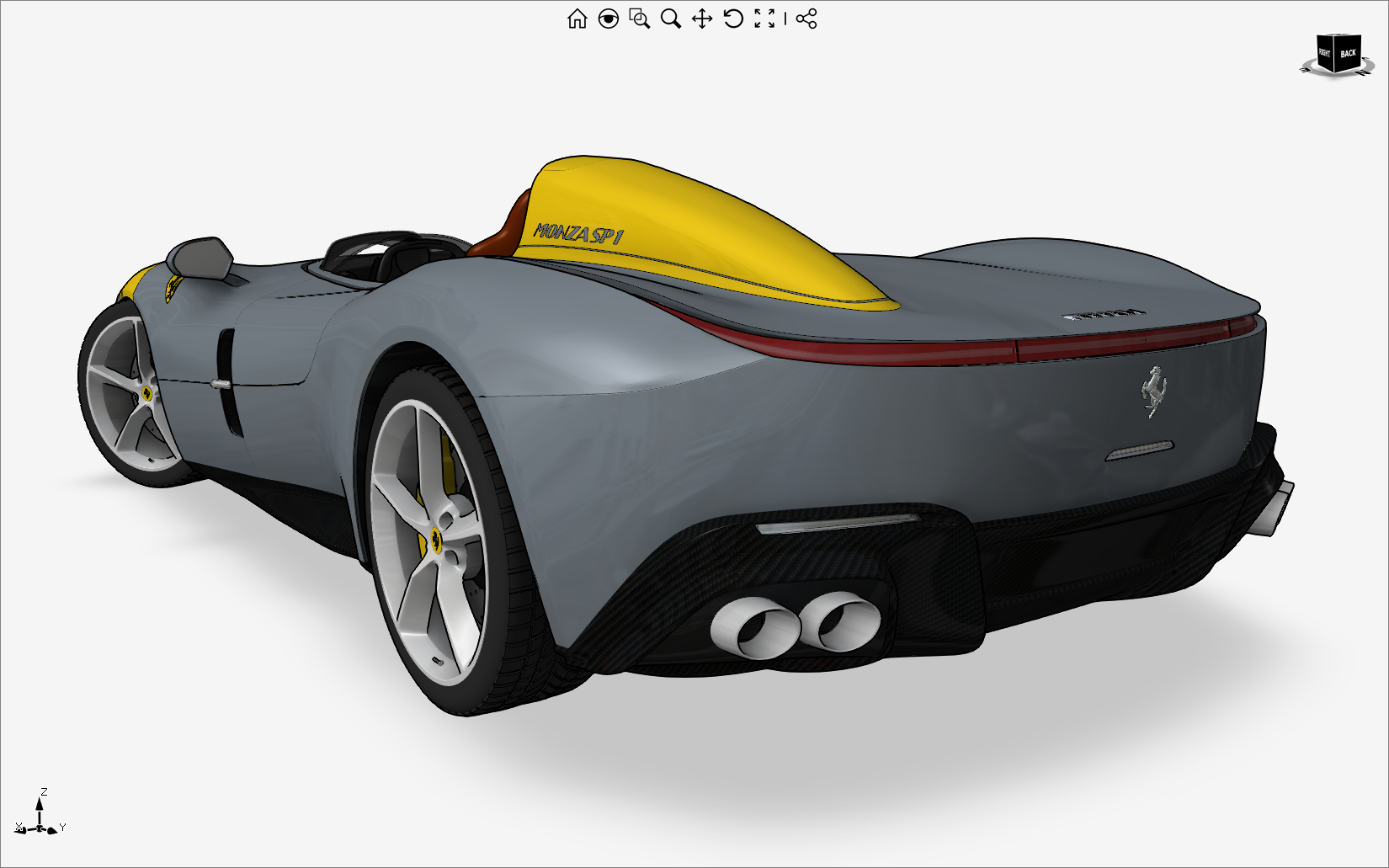

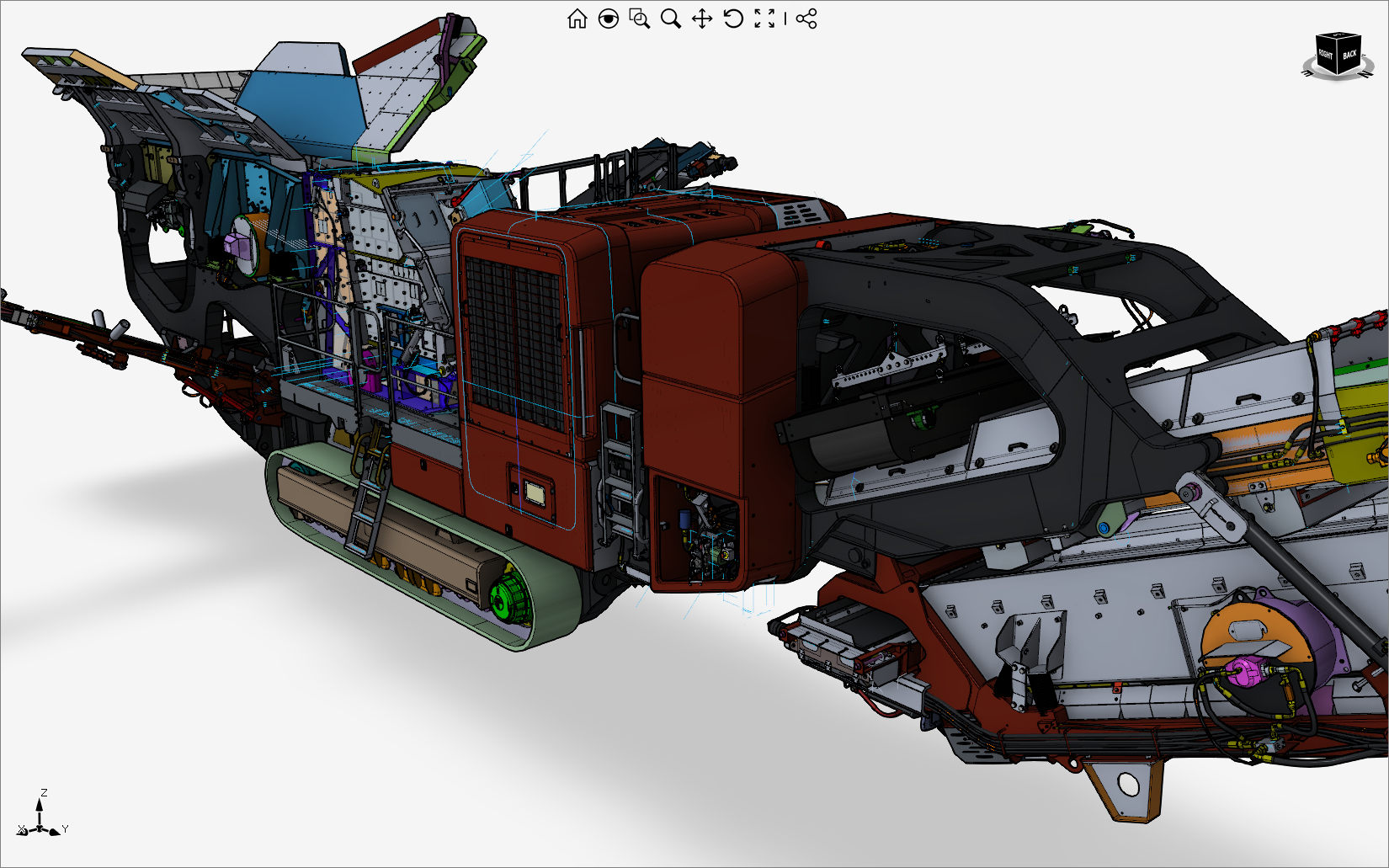

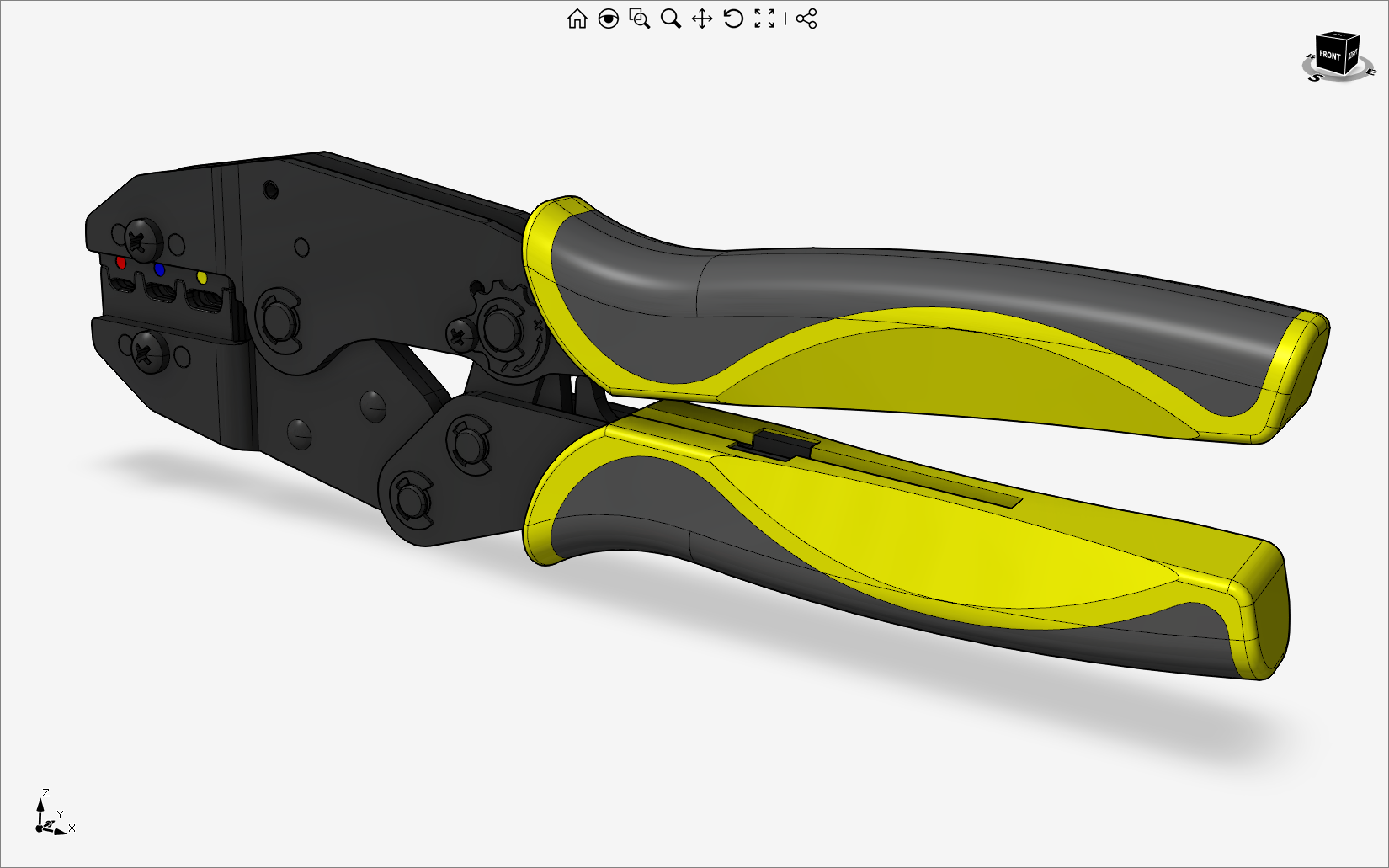

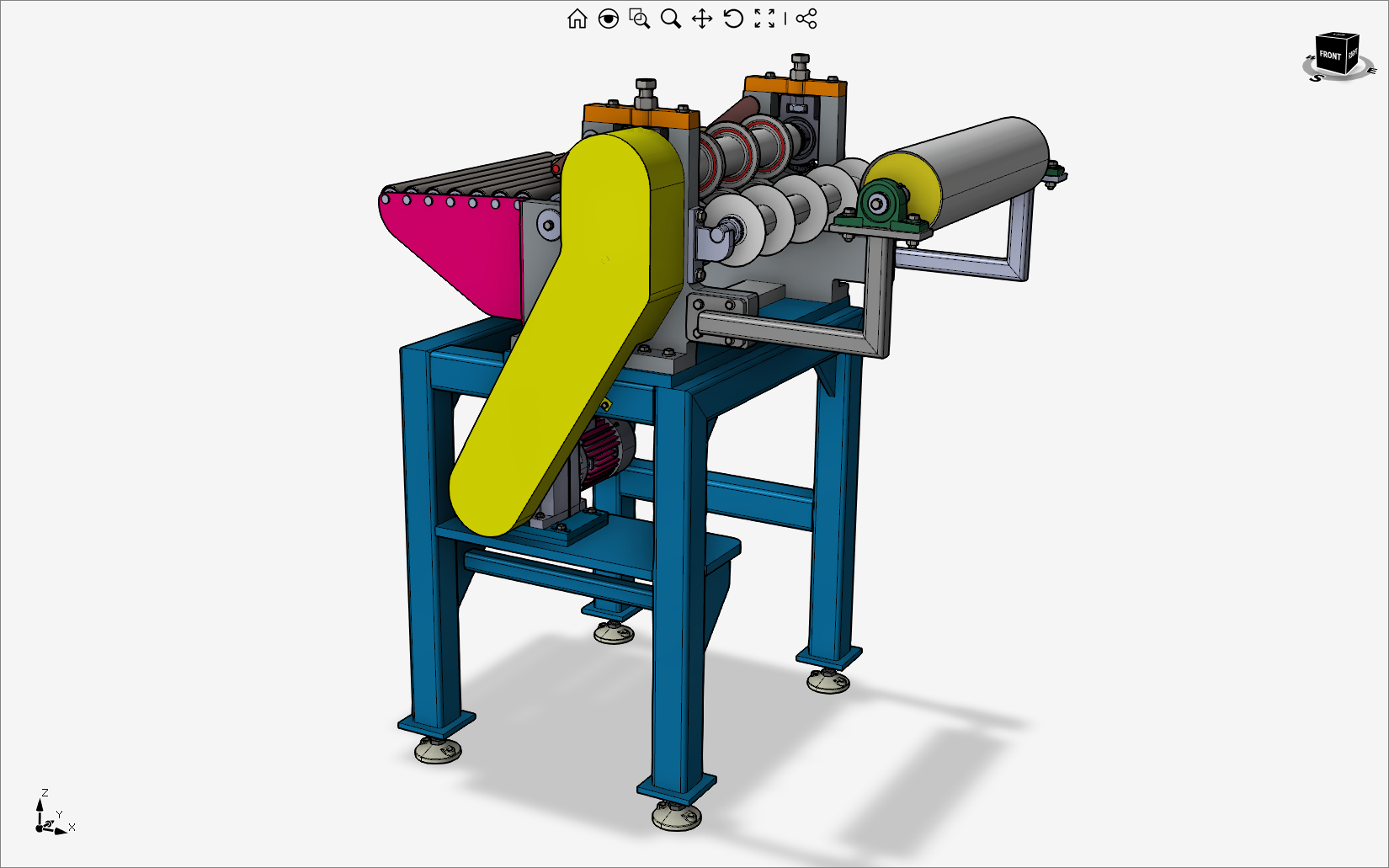

Some screenshots from the image gallery for this edition of the product.

Features

Detailed feature list for this product edition

Entities
  • Point
  • Line
  • Circle
  • Ellipse
  • LinearPath
  • CompositeCurve
  • Mesh
  • Solid (Polygonal)
  • PointCloud
  • Region
  • Dimensions
  • Sketch
  • NURBS Curve
  • NURBS Surface
  • BRep
  • FemMesh
Workspaces (the actual .NET controls)
  • Design
  • Drawing
  • Simulation
  • Manufacture
CGAL
  • Triangulation
  • Mesh reconstruction from point cloud
  • Marching squares/cubes
  • Collision detection
  • Area/mass properties
  • Hidden Lines Removal
  • Hidden Lines Removal with 3D model edges recover
  • Constraint solver
3D Graphics
  • OpenGL and DirectX renderers
  • Fully-leveraged 3D GPU acceleration
  • Wireframe, Shaded, Rendered, Flat and HiddenLines display modes
  • Orthographic and perspective projection for each viewport
  • Up to eight lights (point, spot, directional)
  • Examine, Walk and Fly navigation modes
  • Planar and realistic shadows (with three different quality settings)
  • Multi-viewport support
  • Anti-aliasing
  • Planar reflection
  • Environment mapping
  • Dashed hidden lines
  • Geometric and image-based silhouette curves
  • Minimum frame rate control
  • Progressive drawing
  • Built-in High DPI Support
  • Turbo mode
  • Screen Space Ambient Occlusion
  • Small object and frustum culling
  • Up to six clipping planes
  • Customizable overlay drawing
  • High-quality TrueType and 3D text support
  • High-quality WYSIWYG hard copy output
  • Vector copy to Windows clipboard
Modeling
  • Mesh booleans/cut/split/section
  • Curve-Curve Intersection
  • Surface-Surface Intersection
  • BRep booleans/cut/split/section
  • Curve and surface offset
  • Curve and surface edit
  • Fillet and chamfer
Proprietary File Format
  • Always compatible with previous versions
  • Geometry, tessellation or both.
  • Single or multi-file
  • Lazy loading of large assemblies
  • Extensible with customer data
  • Optional data compression
Input
  • Keyboard
  • Touch
  • Mouse
  • Space mouse
Translators
  • ASC
  • LAS
  • STL
  • OBJ
  • DWG/DXF
  • IFC
  • BRep in IFC import
  • WebGL
  • GCode
  • PDF
  • 3D PDF
  • IGES
  • STEP
  • Nastran
Miscellaneous
  • WorkUnit and WorkManager
  • WinForms and WPF Visual Studio designer support
  • ViewCube, Legend, Toolbar, Timeline and Histogram UI elements
Labels
  • TextOnly
  • LeaderAndText
  • ImageOnly
CAM
  • Work plane setup
  • Support for flat, bull nose and ball end mills
  • Support for any kind of geometry (flipped, cracked and faulty included)
  • 2D toolpath generation
  • Material removal simulation
  • Climb, conventional and mixed cut directions.
  • Straight and circular leads
  • Plunge and helix ramps
  • 3D Clearing
  • 3D Pocket
  • 3D Contour
  • 3D Parallel
  • Toolpath generation limited to a boundary region
  • Flat area detection
Meshing
  • 2D triangles (linear and quadratic)
  • 3D tetrahedrons (linear and quadratic)
  • 3D meshing on NURBS surface and BRep objects with mesh control at vertex/edge/face level
FEM Boundary conditions
  • Fixed displacement and rotation
  • Concentrated load and moment
  • Pressure load
  • Temperature
FEM Element Types
  • 2D & 3D trusses
  • 3 & 6 node triangles - plane stress & strain, 3D axisymmetric
  • 4 & 8 node quadrilaterals - plane stress & strain, 3D axisymmetric
  • 4 & 10 node solid tetrahedrons
  • 6 & 15 node solid pentahedrons
  • 8 & 20 node solid hexahedrons
  • 2D & 3D joints
FEM Solvers
  • Direct
  • Parallel, iterative, preconditioned Conjugate Gradient
